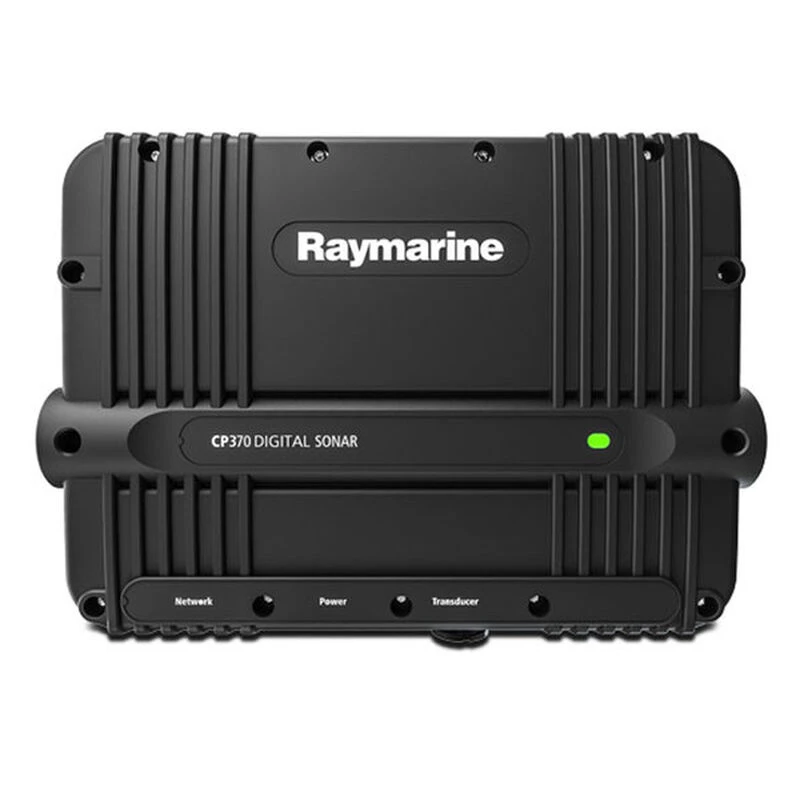

RAYMARINE CP370 Digital Sonar Module
Original price was: $486.00.$95.99Current price is: $95.99.
- Excellent customer service online in a timely manner
- High quality products, low prices.
- Have the best deals
- The home of quality products.
The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.

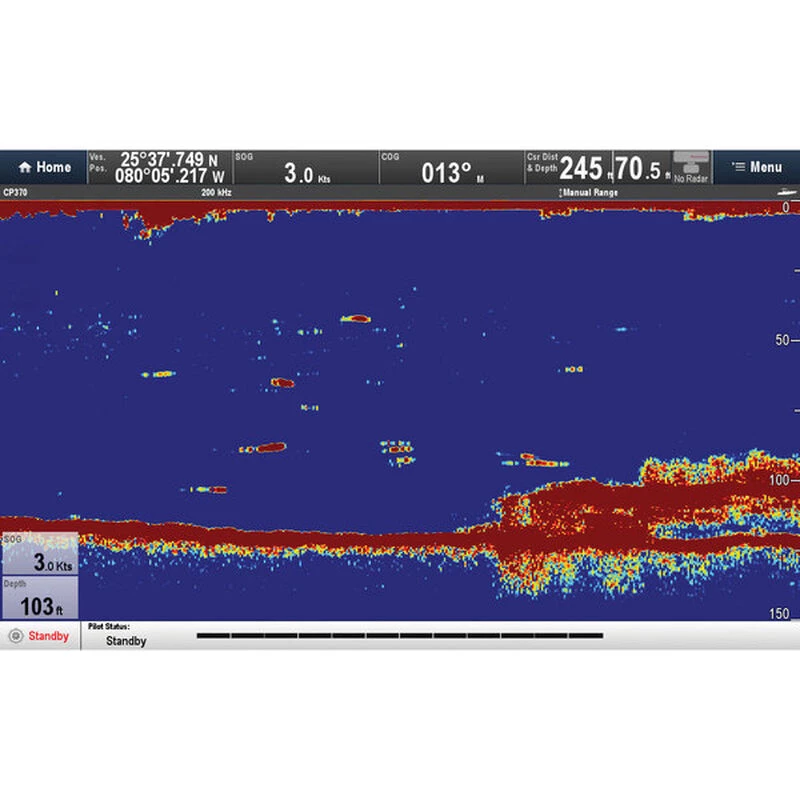

Go deeper, with the next generation ClearPulse™ Sonar. The CP370 Digital Sonar Module is a high-performance, dual-frequency 50/200kHz sonar for coastal and offshore fishing, and the successor to Raymarine’s CP300 Sonar Module. CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next-generation ClearPulse™ digital sonar processing.
Sharper, clutter-free targets allow you to spend less time looking for fish and more time fishing. Smarter target intensity controls reveal bait and game fish with exceptional clarity. Enhanced digital filtering reveals fish targets through the entire water column. New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons.
Specifications
- Compatible Displays: aSeries, cSeries, eSeries, gS Series, C-Widescreen, E-Classic, E-Widescreen
- Transmit Power: 600 or 1000W (depending on transducer)
- Frequency: 50/200kHz
- Maximum Depth: 5000′
- Width: 11 13/16″
- Height: 7 7/8
- Depth: 3 5/16″
- Transducer: Sold separately
- Voltage: 12/24V DC
- Power Consumption: 30.6W (Maximum)
- Data Interface: RayNet (SeaTalkhs)
- Waterproof Rating: IPX6
- Warranty: Three years (with product registration)
Transducer Options
This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you’ll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type | Reading(s) | Material | Transmit Power | Max. Depth | Model |
|---|---|---|---|---|---|
| M260 High-Performance In-Hull Transducer Kit | Depth | Plastic | 1kW | 5,000′ | 8582215 |
| B60 Thru-Hull 20° Tilt Transducer | Depth/Temperature | Bronze | 600W | 1,500′ | 8658122 |
| B60 Thru-Hull 12° Tilt Transducer | Depth/Temperature | Bronze | 600W | 1,500′ | 8658130 |
| P319 Low-Profile Thru-Hull Transducer | Depth | Plastic | 600W | 1,500′ | 2703478 |
| P79 Adjustable In-Hull Transducer | Depth | Plastic | 600W | 1,500′ | 1968965 |
| B258 Thru-Hull Transducer with Fairing Block | Depth/Temperature | Bronze | 1kW | 5,000′ | 7845746 |
| B164 Thru-hull Low-profile 20° Transducer | Depth/Temperature | Bronze | 1kW | 5,000′ | 9393786 |
| B117 Thru-hull Low-profile Transducer | Depth/Temperature | Bronze | 600W | 1,200′ | 2703486 |
| B164 Thru-hull Flush Transducer Tilted | Depth/Temperature | Bronze | 1kW | 1,500′ | 14395545 |
| TM258 Urethane 1kw Transom Mount Transducer | Depth/Temperature | Urethane | 1kW | 2,200′ | 17834441 |
| SS270W Stainless Steel Thru-Hull Wide Beam Transducer | Depth/Temperature | Stainless Steel/Plastic | 1kW | 2,000′ | 17834300 |
| Dimensions | 11.79" Width x 7.9" Height x 3.3" Depth |
|---|---|
| Frequency | 50/200kHz |
| Maximum Depth | 5000 Feet |
| Sonar | Digital Sonar |
| Specific Transducer | Sold Separately |
| Transmit Power | 4kW |
| Warranty | Three Years (with Product Registration) |
| Waterproof | Waterproof |
