LOWRANCE 12° Tilt Thru-Hull Hybrid Dual Imaging Transducer
Original price was: $388.88.$97.99Current price is: $97.99.
- Excellent customer service online in a timely manner
- High quality products, low prices.
- Have the best deals
- The home of quality products.

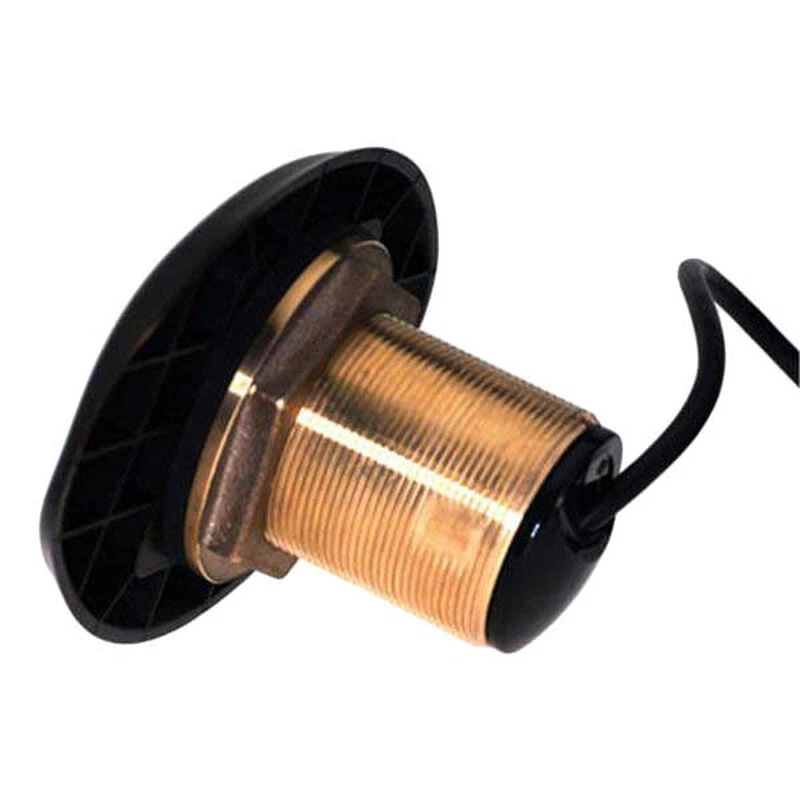

Bronze Hybrid Dual Imagingâ„¢ (HDI) tilted element thru hull transducer. Works with HDS Gen2 Touch and Elite-7 HDI fishfinders. Provides 50/200kHz traditional frequencies plus 455/800kHz DownScan Imaging plus temperature. The transducer comes with a 33′ cable and blue 7-pin Lowrance connector which plugs directly into the Gen 2 Touch and the Elite-7 HDI. The transducer must be selected in the installation menu on the device.
- Frequency: 50/200kHz, 455/800kHz DSI
- Beamwidth: 50kHz 45°, 200kHz 11°, 455kHz (Fore to aft 2.8°, Port to starboard 56°), 800kHz (Fore to aft 1.6°, Port to starboard 32°)
- Material: Bronze
- Transmit Power: 600W (RMS)
- Maximum Depth: 50kHz 3,000′, 200kHz 1,000′, 455kHz 300′, 800kHz 100′
- Cable Length: 33′
- Style: Thru-hull
- Tilted Element Angle: 12°
- Hole Diameter for Installation: 2.375″
- Sensors: Depth/Temp
| Beam | 16×25 Degrees Low-Frequency |
|---|---|
| Deadrise Angle | 0 to 12 Degree |
| Frequency | 50/200+ 455/800kHz |
| Material | Bronze |
| Maximum Depth | 2500 Feet |
| Sonar | Depth |
| Type | Thru-Hull |
