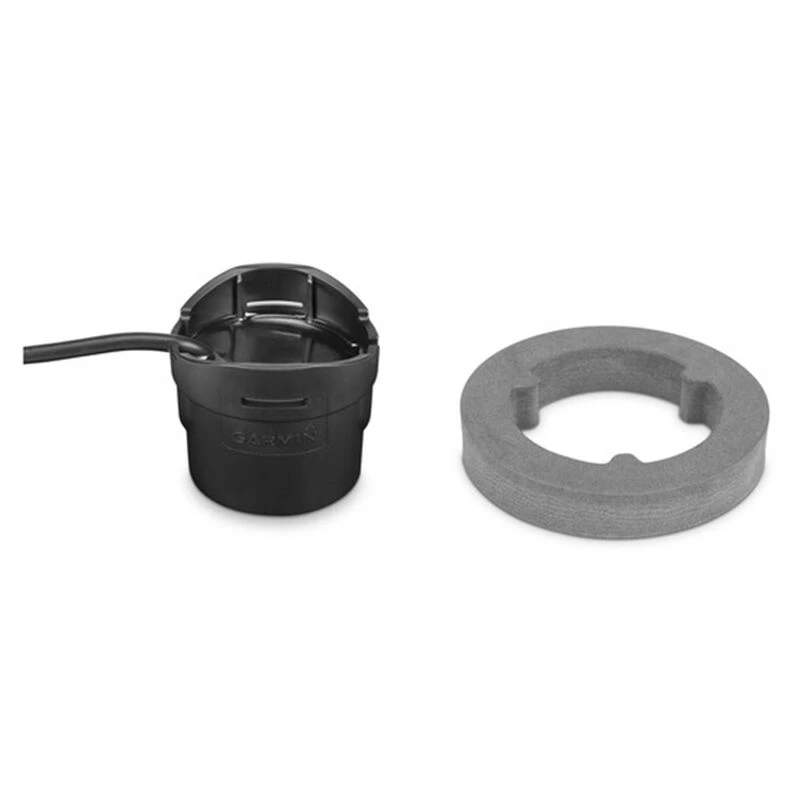

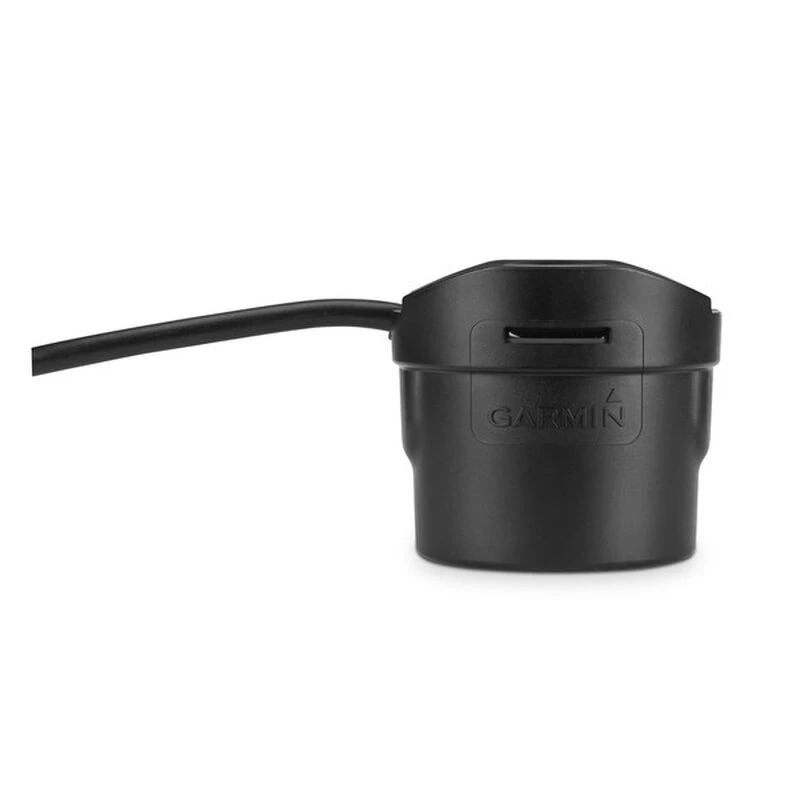

GARMIN GT8HW-IH In-Hull High/Wide CHIRP Transducer

GT8HW-IH transducer is ideal for bass boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues.

It requires a flat section (<6°) in the hull to be mounted and is excellent for boats traveling at high speeds that want to maintain accurate depth readings. The 8-pin transducer features high-wide CHIRP traditional sonar (145-230 kHz) and has a power rating of 250 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.

Specifications

• Application: CHIRP/traditional
• Style: In-hull
• Cable Length: 20′
• Connector: 8-pin
• Monitors: Depth only
• Material: Plastic
• Transmit Power: 250W
• Frequency: CHIRP High Wide (145-230kHz)
• Deadrise Angle: 0° to 6 (0° offset)
• Max. Depth: 800′ in freshwater
• Beamwidths: 24° to 16°
