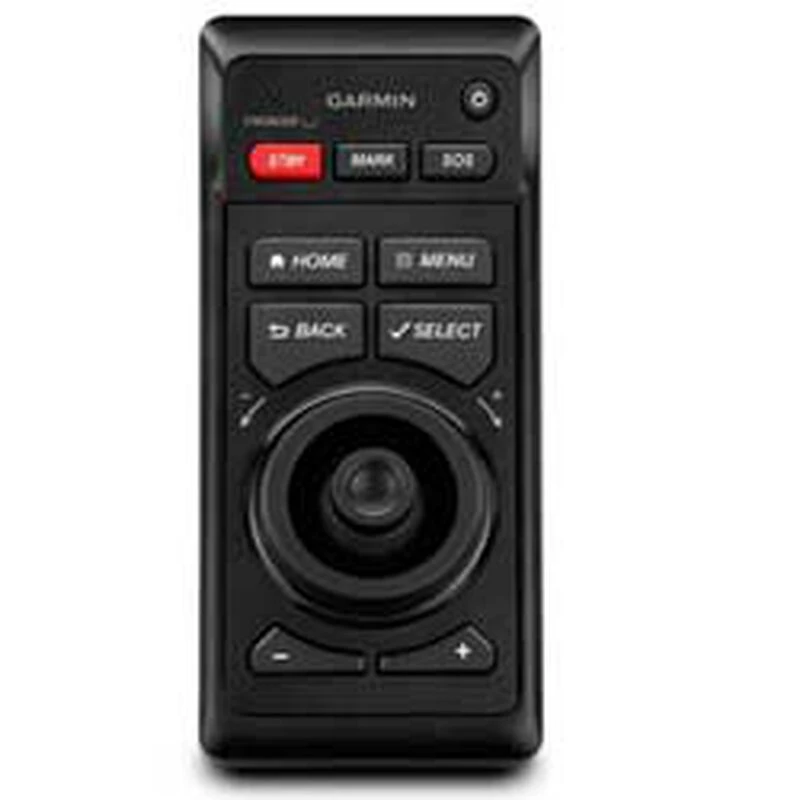

GARMIN GRID Remote Input Device

Provides full control of all GPSMAP^® 8000, 8200 and 8500 Glass Helm series units.

Remote input device provides full control of your compatible chartplotter. Rotary knob and joystick controls provide navigation through menus and screens and allows you to seamlessly navigate between monitors at a station – all while controlling single or multiple compatible monitors and multi-function displays with one device. GRID can be integrated into a captain’s chair for a low-profile controlling solution.

Specifications

• Dimensions: 3 1/16″W x 6 7/8″H x 2 3/8″D
• Weight: 9.1 oz. (258 g)
• Temperature Range: From 5° to 158°F (from -15° to 70°C)
• Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
• Input Power: 10-35V DC
• Fuse: 7.5A, 42V fast-acting
• Maximum Power Usage at 10V DC: 2.8 W
• Typical Current Draw at 12V DC: 100 mA
• Maximum Current Draw at 12V DC: 280 mA
• Compass-safe Distance: 14″ (356 mm)

What’s in the Box

• GRID (Garmin Remote Input Device)
• Mounting hardware
• Power cable
• Network cable (6 ft)
• Documentation

Compatible Displays

• GPSMAP 8008
• GPSMAP 8012
• GPSMAP 8015
• GPSMAP 8208
• GPSMAP 8212
• GPSMAP 8215
• GPSMAP 8500
• GPSMAP 8530
